CNC Wireless Link

Peer-to-peer wireless communication for GRBL using ESP_NOW.

This project uses the ESP_NOW wireless protocol built in to EP8266 and ESP32 micro-controllers to enable full duplex high speed data communication between a serial port (or USB-to-Serial adapter) of a PC and the UART port of a CNC machine.   A wireless connection means that the PC can be located further from the CNC, probably in a cleaner and quieter environment, without the need for long cables and the associated risk of data corruption from electrical interference - a common problem where high-current motors are involved.

Note that WiFi is not recommended for CNC communication because of the lack of inbuilt error checking.  ESP-NOW uses the 802.11b/g/n physical layer but it does not rely on a router or a WiFi network, it is not subject to the latency of a WiFi network. It uses SLIP/PPP which is specifically designed for point-to-point serial communication.

The particular configuration of ESP-NOW is peer-to-peer, bidirectional.  This provides a fast connection with automatic reconnect and no need for a server or available WiFi. The code is the same at both ends. The simplest and cheapest ESP device has been used - ESP-01.

Although the project uses a serial port (or serial to USB adapter) at the PC end, the project runs on any ESP8266 or ESP32, so it could be used with a development module with an on-board USB port, removing the need for a USB-to-serial adapter at the PC end.  In this case it was used with a serial port because this port on the PC was otherwise unused and could be dedicated to the CNC.

Similarly, the UART interface at the CNC end could be removed and the USB interface of an ESP development board used to connect to the CNC.  Or, the machine to be controlled might be a 3D printer, or plotter.  The wireless communication means it is also very suitable for a robot.   A UART interface for the CNC was used in this case because the port was already configured for a wired remote control and was therefore very accessible, and it included a supply voltage.  The project also includes an example of dealing with different logic levels (5V and 3.3V) between the ESP and the device, which may or may not be required, depending on the interface.

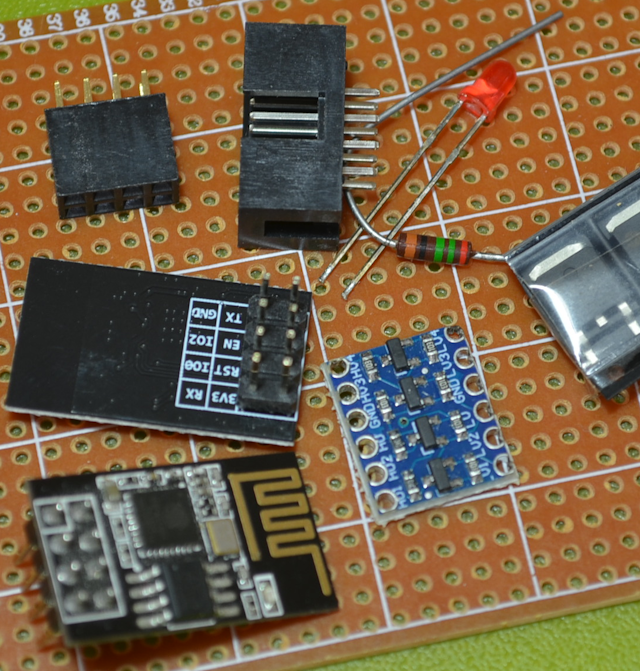

Parts:

Micro-controllers:
ESP-01 (2 of)  In fact, any ESP could be used.  The 01 is very small and very inexpensive, but it does not have a USB port, so it needs a programmer.It has the advantage of using the readily available 4x2 header as both a connector and mounting fixture.

Interface board:
Strip prototyping board
AMS1117 3.3V regulator or similar
10-22uF tantalum capacitor
4-channel logic level converter (only 2 channels used)
Hookup wire,

Connectors:
4x2 male header. Used for the ESP-01. If a different ESP is used at the receiver end the connection will be different.
4x2 female header.  Used to connect to an existing manual remote controller cable.  This connection could be different for some CNC machines.

Optional:
220~250Ohm Resistor
Red LED

Schematic

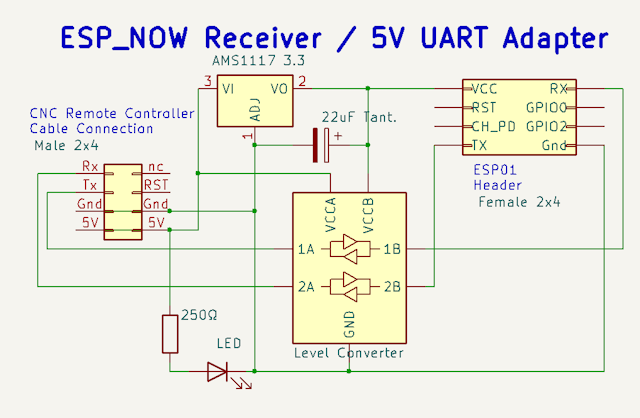

The schematic shows the setup for a 5V TTL level UART interface at the CNC end, using the remote controller header.   This is the connection used with the RaMPS 1.4 boards and many other CNC machines. It might apply to other devices such as plotters or 3D printers.  This level conversion would be duplicated if the PC end is a serial port, unless a separate TTL to Serial adapter is used, but note that a 5V supply will be needed.  Note that Tx and Rx on the male header are labelled from the point of view of the machine.

The suppression capacitor for the AMS1117 can be anything from 10uF to 22uF, but it should be tantalum.  The AMS1117 should regulate down to about 4.5V.  If the 5V supply is unreliable then a smoothing capacitor may be required.  This should be as close to the AMS1117 as possible.

This project does not show the setup for the PC end of the link. Alternative options for the PC end are:

- An exact duplicate of the CNC end, connected to a serial port of the PC. Five volts will be required for the regulator and logic level shifter.
- A duplicate of the CNC end connected to a serial-to-USB adapter and connected to a USB port of the PC. Logic level shifting may not be required if the adapter serial interface is 3.3V. This is the arrangement used in this project.
- Any model of ESP that has a USB interface.  Connect the ESP directly to the USB port of the PC.

Communication between the MCUs is ESP-NOW, and from each MCU to its host is the inbuilt UART port.

Construction

The parts are assembled on a piece of strip prototyping board.  The prototype was assembled without much regard for space, so with some redesign it could be made much smaller.  If it is going to be enclosed in a case then it might be preferable to use a 90-degree header for the CNC cable end, so that it can be mounted flush with one end rather than sunk below the top surface.

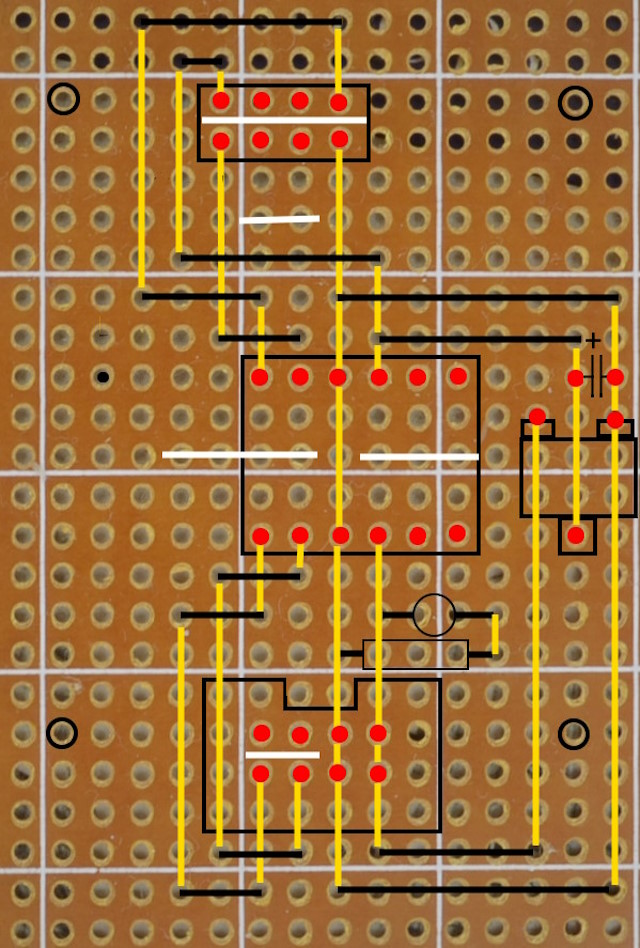

The diagram shows the wiring side with the copper traces running vertically.   The white stripes represent the traces that must be cut on the underside of the board. The black lines are the links to be inserted, while the yellow stripes are the copper traces as actually used in the circuit.  The image indicates that some traces (eg, GND and VCC) have been marked on the upper surface - this marking helps to minimize confusion that can be created by continually turning the board over between placing connecting wires and doing the soldering.

Note that the logic level converter layout is not standardized and some modules may have a different layout.The regulator used in this example is a SMD device, but it is compatible with a thru-hole board if the tabs are bent down and a short length of wire is used to stake the tab through to the track.

The ESP-01 header is not keyed so the board should be marked to make the required orientation obvious.

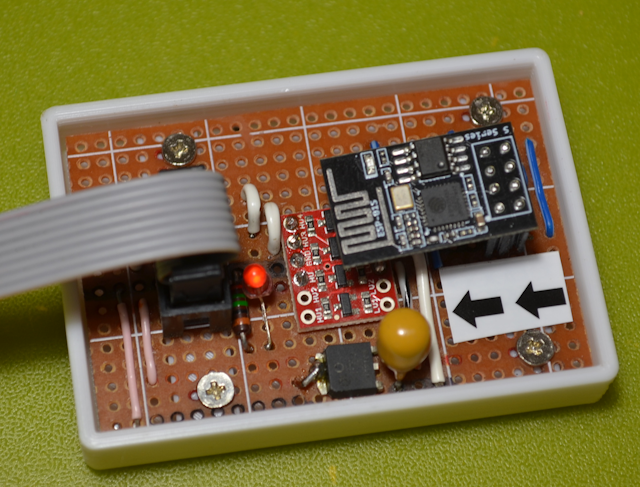

Complete

The code turned out to be somewhat more complex than expected.  The basic process - receiving from the serial port, sending via ESP_NOW and vice versa - is fairly simple, but there are a few complicating factors.

In GRBL, the unit of data that is handled as a single message for purposes of sending and receiving is a line.  However valid line endings are different between the host and the device.  For messages sent from the host to the device the line ending is always carriage return/line feed ('\r\n').  Responses sent back from the machine to the host can only have a single line terminating character, either carriage return ('\r') or line feed ('\n').  Most machines use carriage return, but line feed should be allowed for.   This variability complicates the process of detecting the end of a line of commands.  To avoid running different code at different ends of the communications link, the message should be sent exactly as received.   The code uses a method whereby a carriage return or line feed will be flagged as the end-of-line marker, but there is a check to see if a line feed follows a carriage return or a carriage return follows a line feed. The result of this check then controls the line tremination character(s) appended to the received text when it is passed through.

In addition, there are several commands that can be sent from the control program that are a single character without a line terminator.  There are some single character commands that are ASCII values - these are handled as special cases. Other single-character commands have values greater than 127 and are simply passed straight through. These commands may be may be difficult to enter into a terminal program. There is one command - '\0x18' - that may be useful for testing purposes so a small routine that converts '$X' into 0x18 was created. If testing does not require this code to be used, or if it can be handled as 0x18 from the test application, then this piece of code can be deleted. Alternatively, the routine can be copied and modified to handle additional single-character commands.   The receive buffer is not cleared when a single-character command is received, so the data stream will continue to fill the buffer with a valid command.  Whether or not this command is subsequently executed depends on the action taken in response to the single character command.  For instance the speed overrides should not ignore the current message but an emergency stop obviously will.

Because GRBL uses a mixture of control codes and plain text it is a useful case for this example.  Protocols that use either only control codes or only plain text would be implemented by removing the unused data handling.

There are plenty of debug statements left in the code if anyone runs into problems with a particular system.For this project a breakout was constructed for the CNC end of the link so that the data could be monitored as it was sent and received.   It was also very useful to include OTA in the uploaded code so that it was not necessary to disconnect then reconnect ESP modules whenever new code was uploaded.The code fits in the original 0.5MiB ESP-01, although the 1MiB ESP-01 is more readily available and probably no more expensive than the smaller model. No allocation for a file system is required.

Code

Download
